SIEMENS Biograph mCT 128 PET/CT

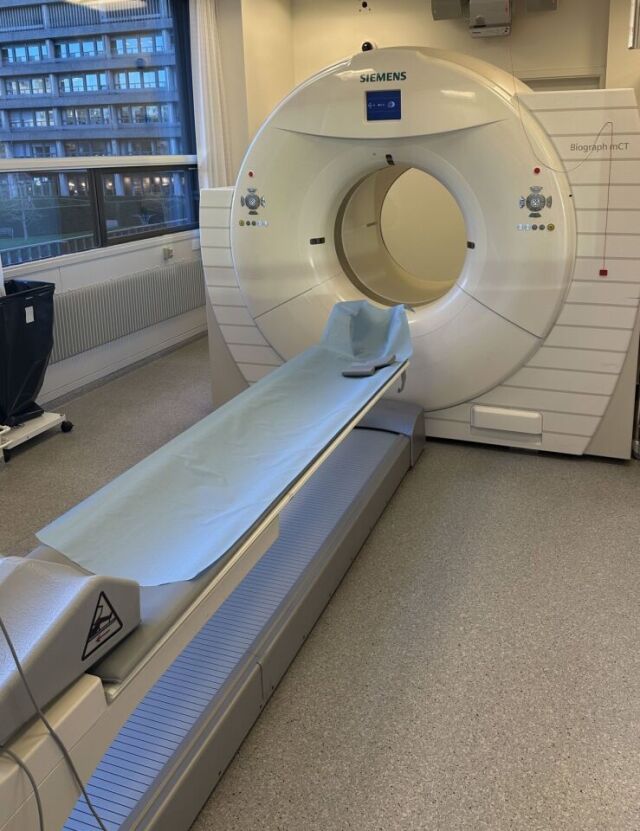

Siemens Biograph mCT 128 PET/CT Scanner

The Siemens Biograph mCT 128 PET/CT scanner is a cutting-edge imaging system that seamlessly integrates positron emission tomography (PET) and computed tomography (CT) technologies. This fusion enables precise anatomical and functional imaging, enhancing diagnostic accuracy and patient care.

Key Features:

• High-Resolution Imaging: Equipped with 128-slice CT capabilities, the Biograph mCT delivers exceptional image clarity, facilitating the detection of small lesions and subtle anatomical details.
• Wide Bore Design: The 78 cm bore diameter accommodates a diverse patient population, including those with claustrophobia or larger body types, ensuring comfort without compromising image quality.
• Fast Acquisition Times: With a minimum scan time of 0.3 seconds, the system reduces motion artifacts and enhances patient throughput.
• Advanced Detector Technology: Utilizing lutetium oxyorthosilicate (LSO) crystals measuring 4 x 4 x 20 mm, the PET component offers high sensitivity and rapid response times, crucial for accurate imaging.
• High Table Capacity: The patient table supports up to 227 kg (500 lbs), accommodating a broad spectrum of patients safely and comfortably.

Technical Specifications:

Gantry:

• Bore Diameter: 78 cm
• Tunnel Length: 136 cm
• Table Capacity: 227 kg (500 lbs)

CT System:

• Generator Power: 80 kW standard; optional 100 kW
• Rotation Times: 1.0, 0.5, 0.33, 0.30 (optional), 0.28 seconds (optional)
• Tube Voltages: 70, 80, 100, 120, 140 kV
• Slices per Rotation: 128
• Minimum Slice Thickness: 0.4 mm

PET System:

• Axial Field of View: 16.4 cm standard; optional 22.1 cm
• Crystal Size: 4 x 4 x 20 mm
• Time-of-Flight Performance: 540 ps
• Effective Sensitivity: 13.2 cps/kBq standard; optional 23.1 cps/kBq

Clinical Applications:

• Oncology: Accurately detects and stages cancers, monitors treatment responses, and assists in radiation therapy planning.
• Cardiology: Assesses myocardial viability and perfusion, aiding in the diagnosis and management of coronary artery disease.
• Neurology: Evaluates neurological disorders, including epilepsy, dementia, and brain tumors, through precise metabolic and structural imaging.

Benefits:

• Enhanced Diagnostic Confidence: Combining high-resolution CT and sensitive PET imaging provides comprehensive diagnostic information.
• Patient Comfort: The wide bore and rapid scan times minimize discomfort and reduce the need for repeat scans.
• Operational Efficiency: Advanced technologies like iterative reconstruction (SAFIRE) and metal artifact reduction (iMAR) improve image quality and streamline workflows.

Incorporating the Siemens Biograph mCT 128 PET/CT scanner into your facility enhances diagnostic capabilities, supports diverse clinical applications, and elevates patient care standards.
